Maintenance Imprimantes et traceurs EPSON SureColor Série T (TECHNIQUE)

Qu'il s'agisse de la gamme Epson SureColor ou autres, nos techniciens agréés sont là pour vous aider à en assurer la maintenance et le dépannage.
Formulaire de maintenance imprimante
  • Cliquez sur le bouton ci-dessus.
  • Complétez le formulaire de maintenance.
  • Un technicien Graphic-Réseau vous contactera dans les plus brefs délais.
Nous pouvons intervenir sur toutes les imprimantes & traceurs EPSON.
A titre d'information, voici quelques exemples de codes erreurs sur certains modèles d'imprimantes Epson de génération SureColor Série T (liste non exhaustive)

Vous pouvez également voir des exemples des
  • codes erreurs sur EPSON Stylus Pro
  • |
  • codes erreurs sur EPSON SureColor SC-S
  • |
  • codes erreurs sur EPSON SureColor Série F
  • |
  • codes erreurs sur EPSON SureColor Série P


  • SC-T3200

    SC-T5200

    SC-T7200

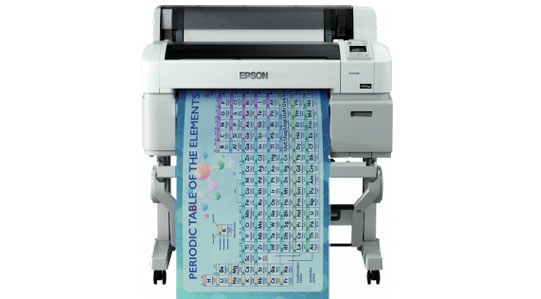

    EPSON SureColor SC-T3200 / SC-T5200 // SC-T7200 : codes d'erreur

    MAINTENANCE REQuest errors

    MAINTENANCE REQ 00000001 : INK TUBE
    MAINTENANCE REQ 00000008 : RTC battery
    MAINTENANCE REQ 00000020 : PUMP CAP UNIT
    MAINTENANCE REQ 00000080 : IC HOLDER (Life of the pump in the ink path)
    MAINTENANCE REQ 00000100 : RTC
    MAINTENANCE REQ 00000400 : DAMPER KIT
    MAINTENANCE REQ 00001000 : IC HOLDER (Life of waste ink pad)

    SERVICE REQuest errors

    SERVICE REQ 0001 : EMG NMI error
    SERVICE REQ 0002 : EMG System error
    SERVICE REQ 1101 : INK TUBE CR life error
    SERVICE REQ 1125 : CR CR HP detection error
    SERVICE REQ 1138 : CR Over current error
    SERVICE REQ 1139 : CR Oscillation error
    SERVICE REQ 113A : CR Overload error
    SERVICE REQ 113B : CR Over speed error
    SERVICE REQ 113C : CR Reversing error
    SERVICE REQ 113D : CR Driving time-out error
    SERVICE REQ 113E : CR Velocity deviation error
    SERVICE REQ 113F : CR Lock error
    SERVICE REQ 1229 : PF Oscillation error 122A PF Overload error
    SERVICE REQ 122B : PF Over speed error
    SERVICE REQ 122C : PF Reversing error
    SERVICE REQ 122D : PF Driving time-out error
    SERVICE REQ 122E : PF Velocity deviation error
    SERVICE REQ 122F : PF Lock error
    SERVICE REQ 131B : Head driver (transmission gate) overheat error
    SERVICE REQ 1412 : PUMP Pump life error
    SERVICE REQ 1416 : PUMP Undetermined position error
    SERVICE REQ 1418 : PUMP Overcurrent error
    SERVICE REQ 141A : PUMP Overload error
    SERVICE REQ 141B : PUMP Over speed error
    SERVICE REQ 141C : PUMP Reversing error
    SERVICE REQ 141D : PUMP Driving time-out error
    SERVICE REQ 141E : PUMP Velocity deviation error
    SERVICE REQ 141F : PUMP Lock error Holder Ink Life of the Holder Ink Pad
    SERVICE REQ 14B0 : Pump in the ink path Life of the pump in the ink path (IC HOLDER life error)
    SERVICE REQ 14C0 : DAMPER KIT
    SERVICE REQ 150C : PG PG position undetectable error
    SERVICE REQ 1519 : APG Oscillation error 151A APG Overload error
    SERVICE REQ 151B : APG Over speed error
    SERVICE REQ 151C : APG Reversing error
    SERVICE REQ 151D : APG Driving time-out error
    SERVICE REQ 151E : APG Velocity deviation error
    SERVICE REQ 151F : APG Lock error
    SERVICE REQ 1523 : ROLL Roll sensor error
    SERVICE REQ 1529 : ROLL Oscillation error
    SERVICE REQ 152A : ROLL Overload error
    SERVICE REQ 152B : ROLL Over speed error
    SERVICE REQ 152C : ROLL Reversing error
    SERVICE REQ 152D : ROLL Driving time-out error
    SERVICE REQ 152E : ROLL Velocity deviation error
    SERVICE REQ 152F : ROLL Lock error
    SERVICE REQ 1539 : Driven roller Oscillation error
    SERVICE REQ 153A : Driven roller Overload error
    SERVICE REQ 153B : Driven roller Over speed error
    SERVICE REQ 153C : Driven roller Reversing error
    SERVICE REQ 153D : Driven roller Driving time-out error
    SERVICE REQ 153E : Driven roller Velocity deviation error
    SERVICE REQ 153F : Driven roller Lock error
    SERVICE REQ 1540 : Cutter Cutter HP detection error
    SERVICE REQ 1541 : Cutter Cutter return error
    SERVICE REQ 1548 : Cutter Oscillation error
    SERVICE REQ 1549 : Cutter Motor disconnection error
    SERVICE REQ 154A : Cutter Overload error
    SERVICE REQ 154B : Cutter Over speed error
    SERVICE REQ 154C : Cutter Reversing error
    SERVICE REQ 154D : Cutter Driving time-out error
    SERVICE REQ 154E : Cutter Velocity deviation error
    SERVICE REQ 154F : Cutter Lock error
    SERVICE REQ 1551 : Sensor Paper Thickness Sensor error
    SERVICE REQ 1561 : --- Paper thickness at power-on error
    SERVICE REQ 1599 : ATC Oscillation error
    SERVICE REQ 159A : ATC Overload error
    SERVICE REQ 159B : ATC Over speed error
    SERVICE REQ 159C : ATC Reversing error
    SERVICE REQ 159D : ATC Driving time-out error
    SERVICE REQ 159E : ATC Velocity deviation error
    SERVICE REQ 159F : ATC Lock error
    SERVICE REQ 15B1 : PPK ROLL Release error
    SERVICE REQ 15B9 : PPK Oscillation error
    SERVICE REQ 15BA : PPK Overload error
    SERVICE REQ 15BB : PPK Over speed error
    SERVICE REQ 15BC : PPK Reversing error
    SERVICE REQ 15BD : PPK Driving time-out error
    SERVICE REQ 15BE : PPK Velocity deviation error
    SERVICE REQ 15C1 : WPPK WROLL release error
    SERVICE REQ 15C9 : WPPK Oscillation error
    SERVICE REQ 15CA : WPPK Overload error
    SERVICE REQ 15CB : WPPK Over speed error
    SERVICE REQ 15CC : WPPK Reversing error
    SERVICE REQ 15CD : WPPK Driving time-out error
    SERVICE REQ 15CE : WPPK Velocity deviation error
    SERVICE REQ 15CF : WPPK Lock error
    SERVICE REQ 15D9 : WATC Oscillation error
    SERVICE REQ 15DA : WATC Overload error
    SERVICE REQ 15DB : WATC Over speed error
    SERVICE REQ 15DC : WATC Reversing error
    SERVICE REQ 15DD : WATC Driving time-out error
    SERVICE REQ 15DE : WATC Velocity deviation error
    SERVICE REQ 15DF : WATC Lock error
    SERVICE REQ 15E9 : WROLL Oscillation error
    SERVICE REQ 15EA : WROLL Overload error
    SERVICE REQ 15EB : WROLL Over speed error
    SERVICE REQ 15EC : WROLL Reversing error
    SERVICE REQ 15ED : WROLL Driving time-out error
    SERVICE REQ 15EE : WROLL Velocity deviation error
    SERVICE REQ 15EF : WROLL Lock error
    SERVICE REQ 1619 : WROLL Unit connection error
    SERVICE REQ 1A23 : RTC Incorrect RTC data error
    SERVICE REQ 1A26 : RTC RTC Access T/O error
    SERVICE REQ 1A37 : --- Thermistor error
    SERVICE REQ 1A38 : Hardware Transistor environmental temperature error
    SERVICE REQ 1A39 : Hardware Head error
    SERVICE REQ 1A41 : --- Head rank ID input error
    SERVICE REQ 1A50 : Hardware I2C communication error (Between
    SERVICE REQ 1A51 : Hardware I2C communication error (Between elements on ASIC and SUB)
    SERVICE REQ 1A80 : Hardware Conflicting option error
    SERVICE REQ 1A81 : Hardware IF Option Board voltage drop error
    SERVICE REQ 1A82 : Hardware PS Option Board startup error
    SERVICE REQ 1A83 : Hardware PS Option Board connection error
    SERVICE REQ 1A84 : Hardware PS Option Board voltage drop error
    SERVICE REQ 1A85 : Hardware PS Option Board FAN stop error
    SERVICE REQ 1A86 : Hardware PS Option Board HDD overcurrent error
    SERVICE REQ 1A87 : Hardware PS Option Board VBUS overcurrent error
    SERVICE REQ 1F80 : CSIC control CSIC error
    SERVICE REQ 1F81 : CSIC control CSIC error
    SERVICE REQ 1F82 : CSIC control CSIC error
    SERVICE REQ 1F83 : CSIC control CSIC error
    SERVICE REQ 1F84 : CSIC control CSIC error
    SERVICE REQ 1F85 : CSIC control CSIC error
    SERVICE REQ 1FB8 : CSIC control CSIC error
    SERVICE REQ 1FB9 : CSIC control CSIC error
    SERVICE REQ 1FBE : CSIC control CSIC error
    SERVICE REQ 1FC0 : CSIC control CSIC error
    SERVICE REQ 1FC1 : CSIC control CSIC error
    SERVICE REQ 1FC2 : CSIC control CSIC error
    SERVICE REQ 1FC3 : CSIC control CSIC error
    SERVICE REQ 1FE0 : Storage control Controlled domain full error
    SERVICE REQ 1FE1 : Storage control Invalid lock
    SERVICE REQ 1FE2 : Storage control Device access error
    SERVICE REQ 1FE3 : Storage control Missing device
    SERVICE REQ 2000 : Memory NVRAM error
    SERVICE REQ 2001 : Memory FLASH ERROR
    SERVICE REQ 2003 : Memory FLASH BOOT SUM CHECK error
    SERVICE REQ 200A : Memory F/W load error
    SERVICE REQ 200D : System System interrupt watchdog time-out error
    SERVICE REQ 2030 : System Internal timeout error
    SERVICE REQ 3000 :AC shut-off AC shut-off

    Votre imprimante EPSON ou le code erreur n'est pas dans cette liste ? Pas de panique, utilisez le formulaire de maintenance accessible en haut de page et précisez votre modèle d'imprimante !
